Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: JL
  • Model Number: HP
  • Type: Electrode Block
  • Application: EAF/LF
  • Diameter: 200-600mm
  • Length: 1000-2700mm
  • Grade: HP (High Power)
  • Resistance (μΩ.m): <7.0
  • Apparent Density (g/cm³ ): >1.66
  • Thermal Expansion: <2.5
  • Flexural Strength (N/㎡): >12.0
  • Ash: <0.3
  • HS code: 854511
  • Product Name: HP grade graphite electrodes with nipples 3TPI 4TPI for EAF LF
  • Superiority: 28 Years Experience
  • Applicattion: EAF LF for steel melting

Packaging & Delivery

Packaging Details PACKING: graphite electrode with preset nipple packed in wood pallets
Dia.150mm: 15pcs/case ,
Dia.200mm: 9pcs/case,
Dia.250mm: 7pcs/case,
Dia.300~400mm: 3pcs/case,
Dia.450~600mm: 2pcs/case
Or as customers requirement.
Delivery Time Shipped in 30 days after payment

Product Description



HP grade graphite electrodes with nipples 3TPI 4TPI for EAF LF

Grade: HP

Diameter:75-600mm

Length: 1350/1800mm/2100/2400

Nipple: 3TPI, 4TPI,4TPIL

Material: Made of high quality petroleum coke, needle coke and coal tar pitch, appreciated by many foreign clients.



Technical properties of HP graphite electrode

1. Physical and chemical index

ltem

unit

Nominal Diameter(mm)

YB/T4090-2000

Typical Values

Industry Standard

200-400

450-550

300-400

450-600

Electric Resistivity

Electrode

μΩ·m

≤7

≤7.5

5.0-6.6

5.4-6.8

Nipple

≤6.5

≤6.5

4.0-5.0

4.0-5.0

Bending strength

Electrode

Mpa

≥10.5

≥9.8

≥11.0

≥11.0

Nipple

≥14.0

≥14.0

≥16.0

≥16.0

Elastic modulus

Electrode

Gpa

≤12.0

≤12.0

≤11.0

≤11.0

Nipple

≤16.0

≤16.0

≤15.0

≤15.0

Bulk density

Electrode

g/cm3

≥1.60

≥1.60

1.63-1.70

1.63-1.70

Nipple

≥1.70

≥1.70

1.73-1.80

1.73-1.80

Ash

Electrode

%

≤0.3

≤0.3

≤0.3

≤0.3

Nipple

CET     100-600°C

Electrode

10-6/°C

≤2.4

≤2.4

1.8-2.2

1.8-2.2

Nipple

≤2.2

≤2.2

1.5-1.8

1.5-1.8





Applications

  • Electrodes in electric arc furnace and ladle refining furnace for steel making;
  • Electrodes in electric smelting furnace for producing industrial silicon, yellow phosphorus, corundum and so on.

Programmable properties

  • Good electrical conductivity.
  • High resistance to thermal shock
  • High mechanical strength

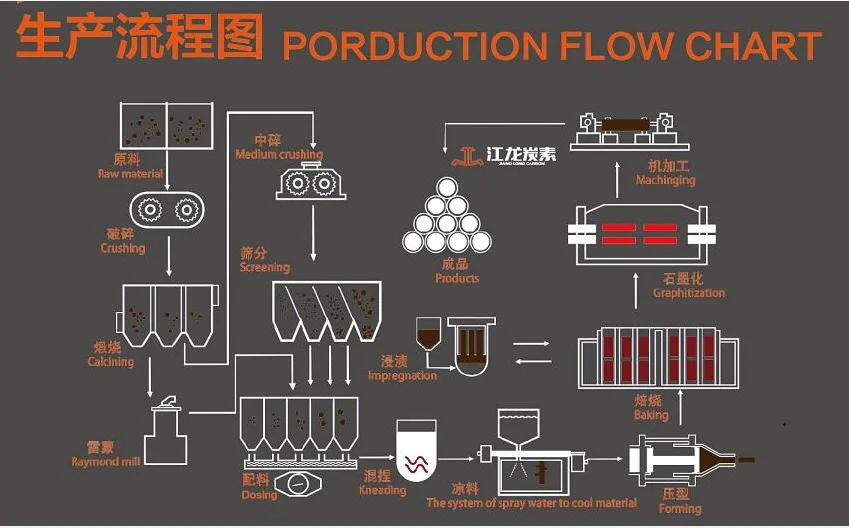

 Process
Certification:

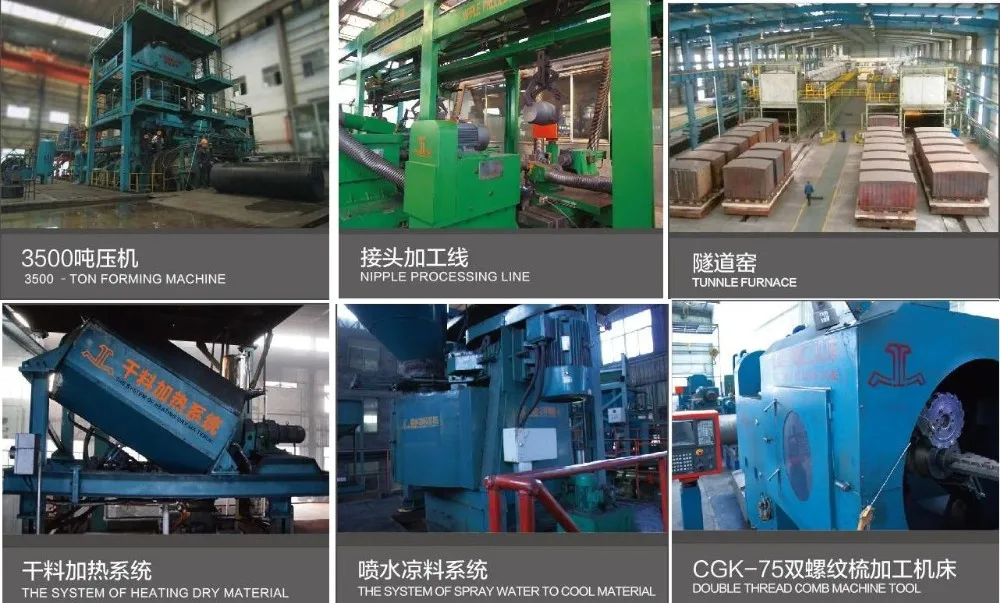

Equipment:
Exhibition

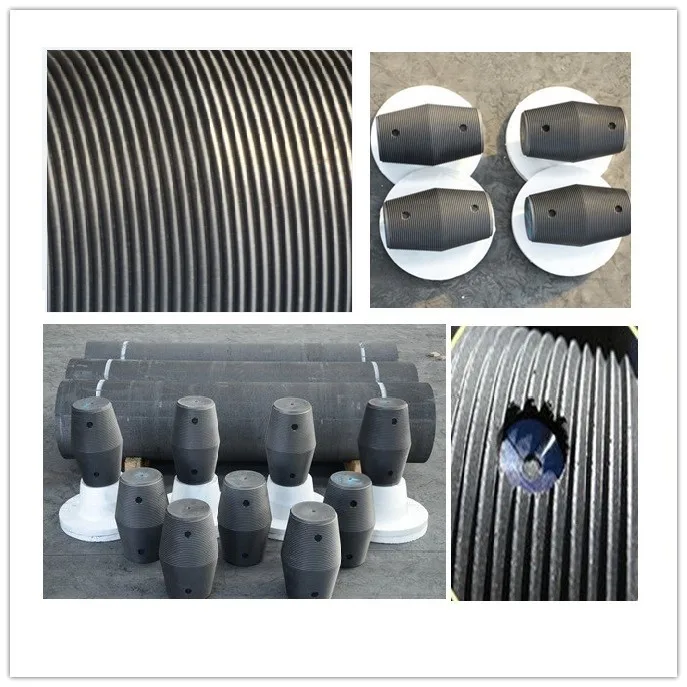

Inspection
Packing & Shipping






Our factory and office

Our Advantage



  • 28 years experience in graphite electrode field
  • Superior quality with competitive price
  • Capacity is 30000 Tons per year
  • Short delivery time
  • ISO 9001Certification
  • Length upon customer’s requirement
  • Good after-sale service
  • Near Gas resource for coking plant, near power resource for Graphitization, Save cost.

FAQ



FAQ

MOQ?

If for trial order,we accept1-5mt, Support LCL

Delivery time?

To make the shipment fast, we have large quantity in stock, normally delivery time will be 30 days when confirm the order

Price?

Before inquiry us the price, pls be kindly send us the detail data of the material you need. We will give you our best price

Payment terms?

It is 30%in advance by T/T, or L/C at sight.

Trade or Manufacture?

We are manufacturer, our factory is located in Xuzhou ,Jiangsu province.

Production Capacity?

30000 Mt per year
